SharePoint Connector

The SharePoint connector allows you to read documents from and write converted outputs to SharePoint sites and OneDrive for Business using Microsoft Graph API with app-only authentication. Use it as both a source (to read documents for conversion) and a target (to write converted results).

Prerequisites

• Microsoft Entra ID (Azure AD) Registration: You must register an application in the Azure Portal to obtain API credentials.
• Admin Access: Tenant administrator privileges to grant API permissions
• SharePoint Site or OneDrive: Access to a SharePoint site or OneDrive for Business account

Setup and Authentication

1. Create App Registration

1. Log in to the Azure Portal
2. Navigate to Microsoft Entra ID (formerly Azure AD)
3. Go to Add → *App Registration
4. Enter a name (e.g., "Docling SharePoint Connector")
5. Choose Single tenant (or multi-tenant if needed)
6. Click Register
7. Note the Application (client) ID and Directory (tenant) ID

2. Grant API Permissions

1. In your app registration, go to API permissions
2. Click Add a permission → Microsoft Graph → Application permissions
3. Add the following permissions:

For Source (reading):

• Sites.Read.All - Read items in all site collections
• Files.Read.All - Read files in all site collections

For Target (writing):

• Sites.ReadWrite.All - Read and write items in all site collections
• Files.ReadWrite.All - Read and write files in all site collections

4. Click Grant admin consent for your tenant (requires admin privileges)

3. Create Client Secret

1. Go to Certificates & secrets
2. Click New client secret
3. Enter a description and choose expiration
4. Click Add
5. Copy the secret value immediately (it won't be shown again)

4. Identify Tenant

Your tenant identifier can be:

• Tenant ID (GUID): From the app registration overview page
• Tenant domain: e.g., example.onmicrosoft.com or example.com

5. Get SharePoint Site URL or User Email

For SharePoint:

• Site URL format: https://your-org.sharepoint.com/sites/your-site
• Find it by navigating to your SharePoint site and copying the URL

For OneDrive for Business:

• User principal name (email): [email protected]
• Note: Only OneDrive for Business (Entra-backed) is accessible with app-only credentials

Configuration

The SharePoint connector can be used as both a source and target in the Batch API.

Required Parameters

Required (Choose One)

• site_url (string) - SharePoint site URL (e.g., https://your-org.sharepoint.com/sites/your-site)
• OR onedrive_user (string) - User principal name for OneDrive for Business (e.g., [email protected])

Optional Parameters

Connector-Specific Behavior

As a Source

When used as a source, the connector:

• Traverses folders recursively: Processes all files in folder_path and its subfolders
• Respects file_ids: If specified, only processes those specific items
• Respects limits: Stops after max_num_elements files if specified
• Uses Graph API: Accesses files through Microsoft Graph, not direct SharePoint REST API

As a Target

When used as a target, the connector:

• Writes to folder: Uploads converted outputs to the specified folder_path
• Creates folder if needed: The destination folder is created automatically
• Non-destructive: Never modifies or deletes source files
• Preserves filenames: Output files named based on source filename and format

SharePoint vs OneDrive

• SharePoint (site_url): Access document libraries within a SharePoint site

  • Can specify which document library with document_library parameter
  • Defaults to the site's default library if not specified

• OneDrive for Business (onedrive_user): Access a user's OneDrive

  • Resolves to /users/{onedrive_user}/drive in Graph API
  • Only works with Entra-backed OneDrive accounts (not personal accounts)

Security and Permissions

Required Microsoft Graph Permissions

The app registration must have Application permissions (not Delegated):

Minimum for Source:

• Sites.Read.All and Files.Read.All

Minimum for Target:

• Sites.ReadWrite.All and Files.ReadWrite.All

Admin Consent

Application permissions require tenant admin consent. Contact your Microsoft 365 administrator if you cannot grant consent yourself.

Limitations

• OneDrive for Business Only: Personal OneDrive accounts are not accessible with app-only credentials.
• Rate Limits: Subject to Microsoft Graph API throttling limits. See Microsoft Graph throttling guidance.

Usage Examples

There are three main ways to interface with the connectors. All use the same underlying POST /v1/convert/source/batch endpoint.

Tasks UI

Navigate to the Tasks view and select "Create Task +". Select Batch as the task type (connectors use batch tasks, not single).

Fill in the fields as prompted. They should correspond to the fields gathered above (excluding 'kind').

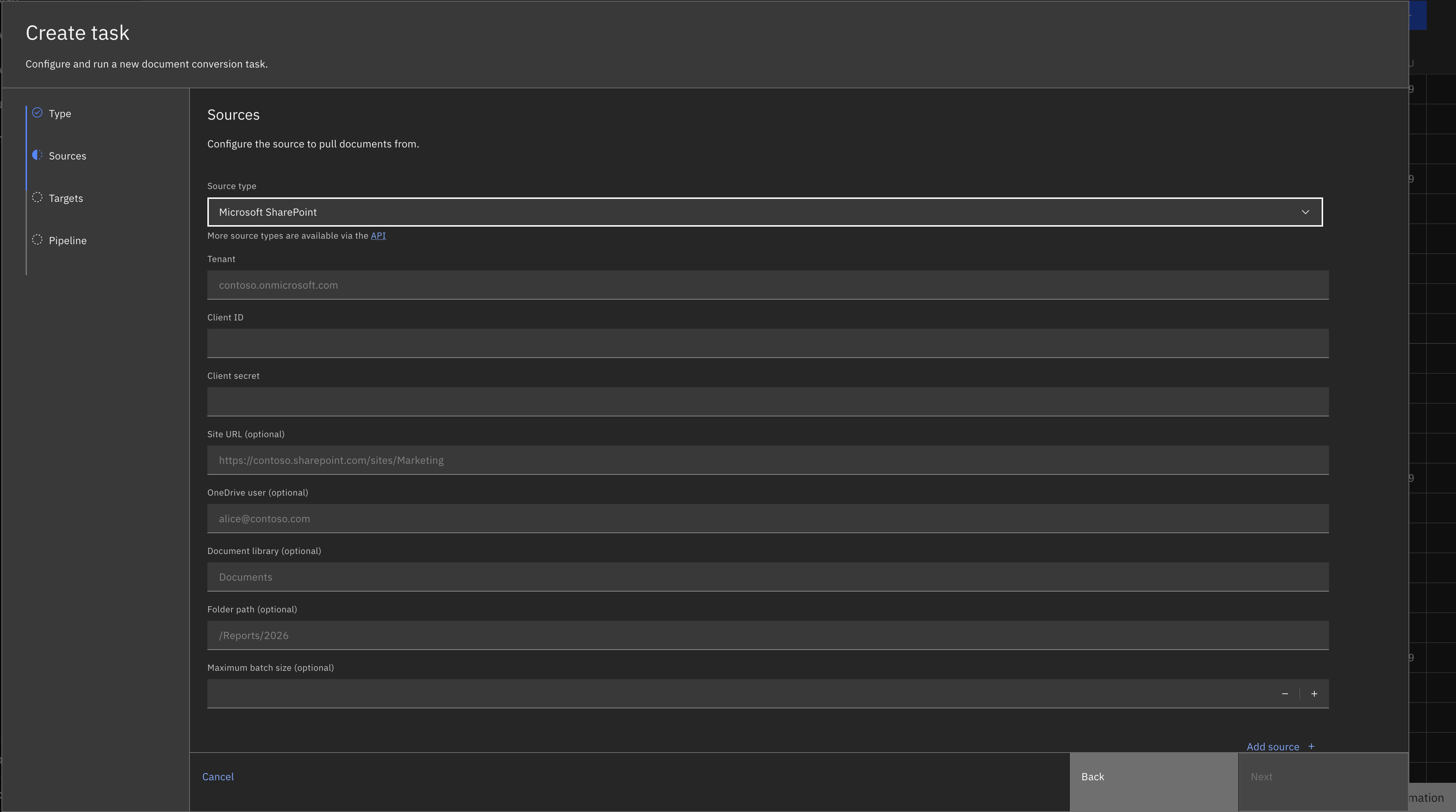

SharePoint as a Source

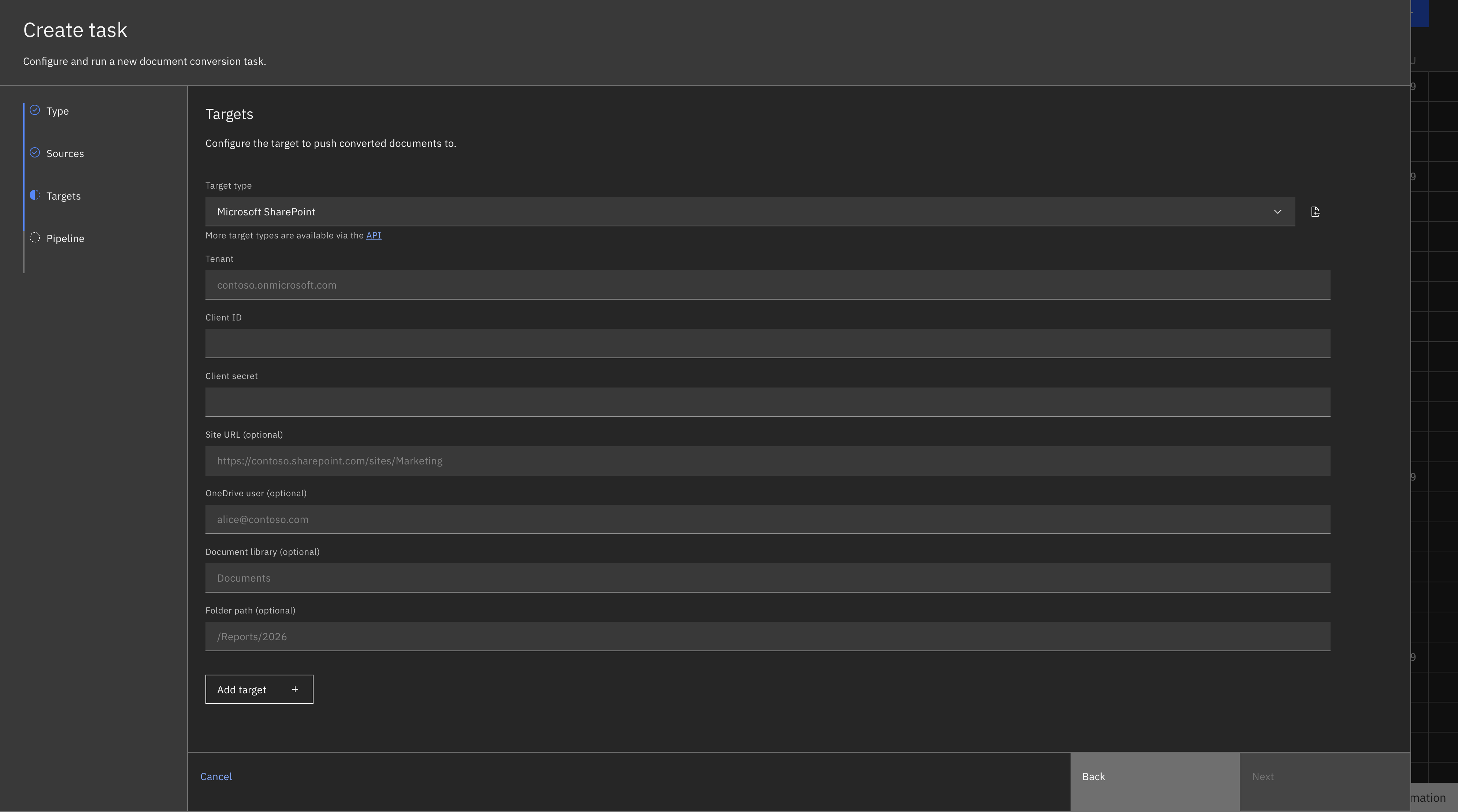

SharePoint as a Target

REST API

curl -X POST "${DOCLING_SERVICE_URL}/v1/convert/source/batch" \
  -H "X-Api-Key: ${DOCLING_API_KEY}" \
  -H "Content-Type: application/json" \
  -d '{
    "sources": [
      {
        "kind": "sharepoint",
        "tenant": "example.onmicrosoft.com",
        "client_id": "12345678-1234-1234-1234-123456789abc",
        "client_secret": "YOUR_CLIENT_SECRET",
        "site_url": "https://your-org.sharepoint.com/sites/your-site",
        "document_library": "Documents",
        "folder_path": "/Reports/2026",
        "max_num_elements": 50
      }
    ],
    "target": {
      "kind": "sharepoint",
      "tenant": "contoso.onmicrosoft.com",
      "client_id": "12345678-1234-1234-1234-123456789abc",
      "client_secret": "YOUR_CLIENT_SECRET",
      "site_url": "https://contoso.sharepoint.com/sites/Marketing",
      "document_library": "Documents",
      "folder_path": "/Converted"
    },
    "options": {
      "to_formats": ["md", "json"]
    }
  }'

OneDrive for Business

curl -X POST "${DOCLING_SERVICE_URL}/v1/convert/source/batch" \
  -H "X-Api-Key: ${DOCLING_API_KEY}" \
  -H "Content-Type: application/json" \
  -d '{
    "sources": [
      {
        "kind": "sharepoint",
        "tenant": "example.onmicrosoft.com",
        "client_id": "12345678-1234-1234-1234-123456789abc",
        "client_secret": "YOUR_CLIENT_SECRET",
        "onedrive_user": "[email protected]",
        "folder_path": "/Work Documents"
      }
    ],
    "target": {
      "kind": "presigned_url"
    },
    "options": {
      "to_formats": ["md"]
    }
  }'

Python SDK

from docling.service_client import DoclingServiceClient
from docling.datamodel.service.requests import GenericSourceRequest
from docling.datamodel.service.targets import GenericTargetRequest
import os

SERVICE_URL = os.getenv("DOCLING_SERVICE_URL")
API_KEY = os.getenv("DOCLING_API_KEY")

# SharePoint source
source = GenericSourceRequest(
    kind="sharepoint",
    tenant="example.onmicrosoft.com",
    client_id="12345678-1234-1234-1234-123456789abc",
    client_secret="YOUR_CLIENT_SECRET",
    site_url="https://your-org.sharepoint.com/sites/your-site",
    folder_path="/Reports/2026",
    max_num_elements=50
)

# SharePoint target
target = GenericTargetRequest(
    kind="sharepoint",
    tenant="example.onmicrosoft.com",
    client_id="12345678-1234-1234-1234-123456789abc",
    client_secret="YOUR_CLIENT_SECRET",
    site_url="https://your-org.sharepoint.com/sites/your-site",
    folder_path="/Converted"
)

with DoclingServiceClient(url=SERVICE_URL, api_key=API_KEY) as client:
    job = client.submit_batch(
        sources=[source],
        target=target,
        output_formats=["md", "json"]
    )

    # Wait for completion
    response = job.result()
    print(f"Processed {response.num_converted} documents")
    print(f"Succeeded: {response.num_succeeded}")
    print(f"Failed: {response.num_failed}")

Related Documentation

• Batch API Reference - Complete batch endpoint documentation
• Connectors Overview - All available connectors
• Microsoft Graph Documentation - Official Microsoft Graph documentation
• SharePoint Graph API - SharePoint-specific Graph APIs
• App-only authentication - Microsoft Graph app-only auth guide
• Graph API throttling - Rate limits and best practices
