Google Cloud Storage Connector

The Google Cloud Storage (GCS) connector allows you to read documents from and write converted outputs to GCS buckets. Use it as both a source (to read documents for conversion) and a target (to write converted results).

Prerequisites

Google Cloud Project: A GCP project with Cloud Storage API enabled
GCS Bucket: One or more buckets for your documents
Authentication: Service account key

Setup and Authentication

1. Create a Service Account

Go to the GCP Console
Navigate to IAM & Admin → Service Accounts
Click Create Service Account
Enter a name and description
Click Create and Continue

2. Grant Permissions

Assign the appropriate role:

Storage Object Viewer - For reading from buckets (source)
Storage Object Creator - For writing to buckets (target)
Storage Object Admin - For both read and write

3. Create and Download Key

Click on the newly created service account
Go to the Keys tab
Click Add Key → Create new key
Choose JSON format
Download and save the JSON key file securely

The JSON key contains all required fields:

{
  "type": "service_account",
  "project_id": "my-gcp-project",
  "private_key_id": "...",
  "private_key": "-----BEGIN PRIVATE KEY-----\n...\n-----END PRIVATE KEY-----\n",
  "client_email": "[email protected]",
  "client_id": "...",
  "auth_uri": "https://accounts.google.com/o/oauth2/auth",
  "token_uri": "https://oauth2.googleapis.com/token",
  "auth_provider_x509_cert_url": "https://www.googleapis.com/oauth2/v1/certs",
  "client_x509_cert_url": "...",
  "universe_domain": "googleapis.com"
}

Configuration

The GCS connector can be used as both a source and target in the Batch API.

Required Parameters

Parameter	Type	Description
`kind`	string	Must be `"google_cloud_storage"`
`bucket`	string	GCS bucket name
`service_account_key`	object	Service account credentials JSON (see below)

Optional Parameters

Parameter	Type	Default	Description
`key_prefix`	string	`""`	Object key prefix (folder path). For sources, filters which objects to read. For targets, prepends to output object names
`project`	string	`null`	GCP project ID. Optional if already specified in service account key
`max_num_elements`	integer	`null`	(Source only) Maximum number of objects to process from this source

Service Account Key Object

When providing service_account_key, include these fields from your downloaded JSON key file:

Field	Type	Required	Description
`type`	string	Yes	Always `"service_account"`
`project_id`	string	Yes	GCP project ID
`private_key_id`	string	Yes	Key ID of the private key
`private_key`	string	Yes	RSA private key in PEM format
`client_email`	string	Yes	Service account email address
`client_id`	string	Yes	Numeric client ID
`auth_uri`	string	Yes	OAuth 2.0 authorization endpoint
`token_uri`	string	Yes	OAuth 2.0 token endpoint
`auth_provider_x509_cert_url`	string	Yes	X.509 certificate URL for auth provider
`client_x509_cert_url`	string	Yes	X.509 certificate URL for service account
`universe_domain`	string	Yes	Google Cloud universe domain (typically `"googleapis.com"`)

Connector-Specific Behavior

As a Source

When used as a source, the connector:

Traverses the bucket: Reads all objects matching the key_prefix filter
Respects limits: Stops after max_num_elements objects if specified
Maintains hierarchy: Object names preserve the original folder structure
Filters by prefix: Only processes objects whose names start with key_prefix

As a Target

When used as a target, the connector:

Writes to bucket: Uploads converted outputs to the specified bucket
Preserves structure: Maintains source document folder structure in object names
Adds prefix: Prepends key_prefix to all output object names for organization
Non-destructive: Never modifies or deletes source objects

Object Naming

Source objects: <key_prefix><original-object-name>
Target objects: <key_prefix><source-filename>.<format>

Example: Source object documents/report.pdf with key_prefix: "converted/" becomes converted/report.md

Security and Permissions

Required Permissions

As a Source:

storage.objects.list - List objects in bucket
storage.objects.get - Read object data

As a Target:

storage.objects.create - Write object data

Predefined Roles:

Storage Object Viewer - Read-only access (source)
Storage Object Creator - Write-only access (target)
Storage Object Admin - Full access (both source and target)

Limitations

Bucket Must Exist: The connector does not create buckets. Create them manually in GCP Console or via gcloud storage CLI.
Throughput: Subject to GCS bucket quotas and network bandwidth.

Usage Examples

There are three main ways to interface with the connectors. All use the same underlying POST /v1/convert/source/batch endpoint.

Tasks UI

Navigate to the Tasks view and select "Create Task +". Select Batch as the task type (connectors use batch tasks, not single).

Fill in the fields as prompted. They should correspond to the fields gathered above (excluding 'kind').

GCS as a Source

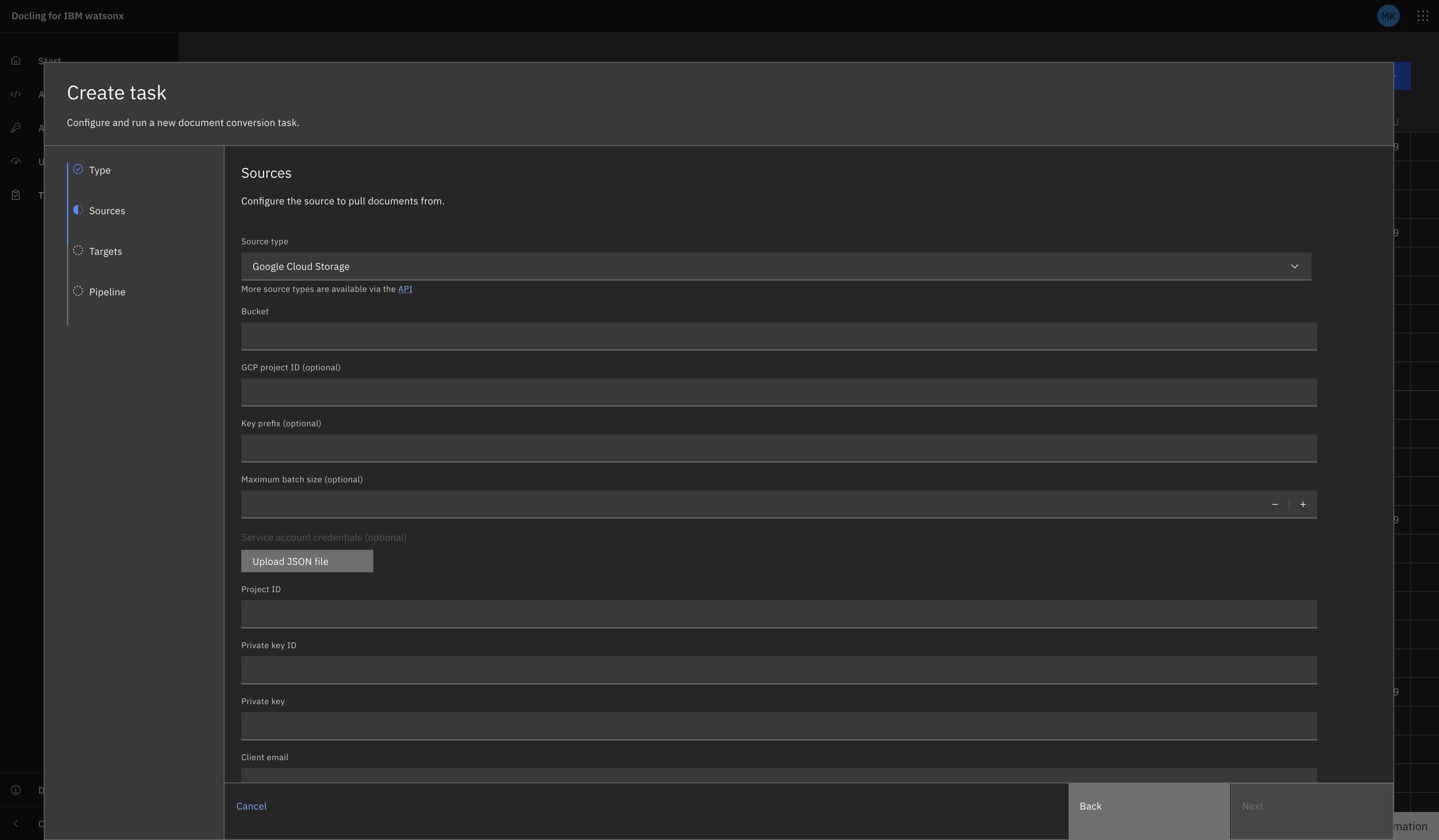

GCS Source Task Configuration

GCS as a Target

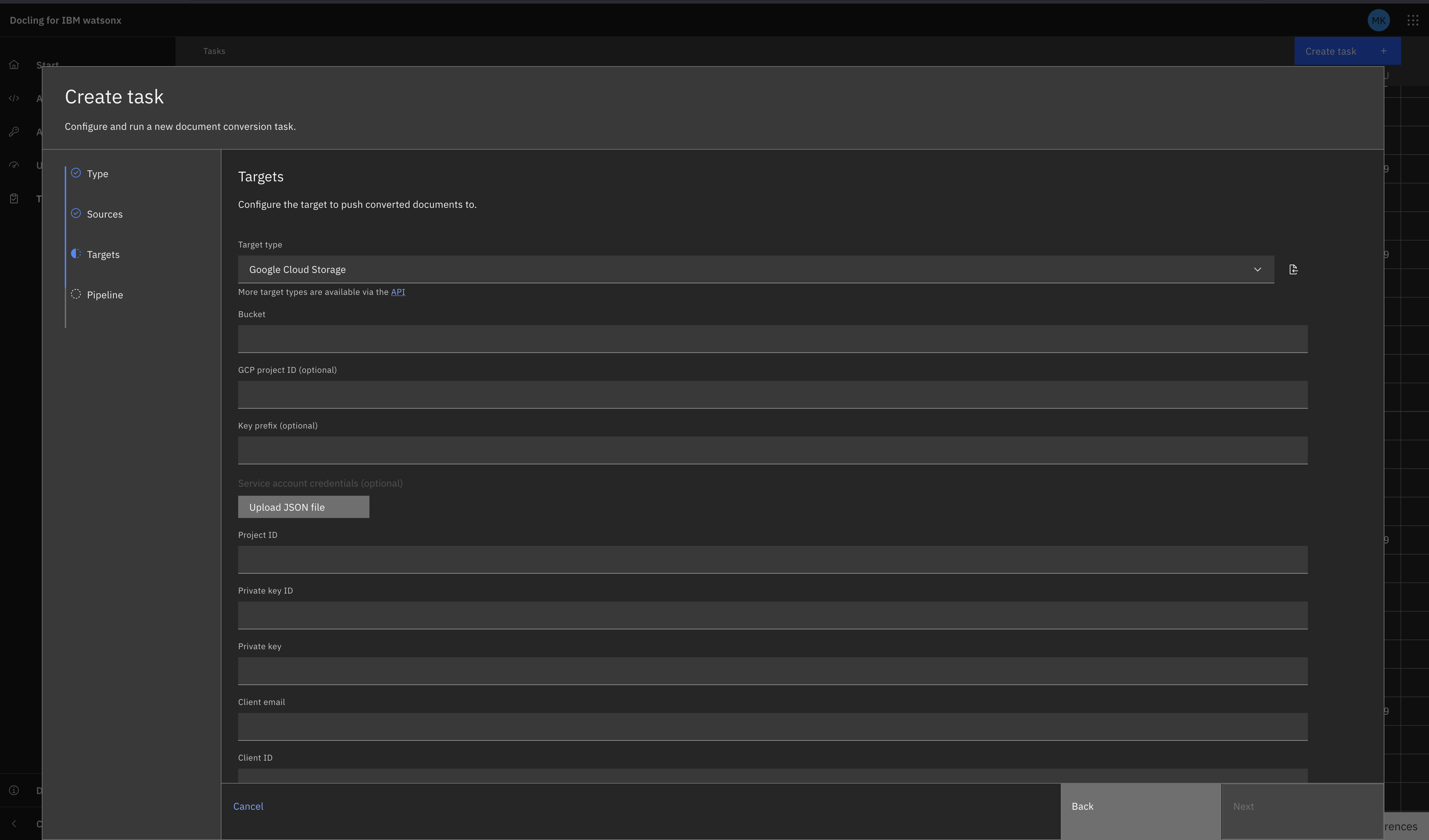

GCS Target Task Configuration

You are given the option to upload a JSON file to populate the auth credentials here.

REST API

curl -X POST "${DOCLING_SERVICE_URL}/v1/convert/source/batch" \
  -H "X-Api-Key: ${DOCLING_API_KEY}" \
  -H "Content-Type: application/json" \
  -d '{
    "sources": [
      {
        "kind": "google_cloud_storage",
        "bucket": "my-input-bucket",
        "key_prefix": "documents/",
        "max_num_elements": 100,
        "service_account_key": {
          "type": "service_account",
          "project_id": "my-gcp-project",
          "private_key_id": "abc123...",
          "private_key": "-----BEGIN PRIVATE KEY-----\n...\n-----END PRIVATE KEY-----\n",
          "client_email": "[email protected]",
          "client_id": "123456789",
          "auth_uri": "https://accounts.google.com/o/oauth2/auth",
          "token_uri": "https://oauth2.googleapis.com/token",
          "auth_provider_x509_cert_url": "https://www.googleapis.com/oauth2/v1/certs",
          "client_x509_cert_url": "https://www.googleapis.com/robot/v1/metadata/x509/...",
          "universe_domain": "googleapis.com"
        }
      }
    ],
    "target": {
      "kind": "google_cloud_storage",
      "bucket": "my-output-bucket",
      "key_prefix": "converted/",
      "service_account_key": {
        "type": "service_account",
        "project_id": "my-gcp-project",
        "private_key_id": "abc123...",
        "private_key": "-----BEGIN PRIVATE KEY-----\n...\n-----END PRIVATE KEY-----\n",
        "client_email": "[email protected]",
        "client_id": "123456789",
        "auth_uri": "https://accounts.google.com/o/oauth2/auth",
        "token_uri": "https://oauth2.googleapis.com/token",
        "auth_provider_x509_cert_url": "https://www.googleapis.com/oauth2/v1/certs",
        "client_x509_cert_url": "https://www.googleapis.com/robot/v1/metadata/x509/...",
        "universe_domain": "googleapis.com"
      }
    },
    "options": {
      "to_formats": ["md", "json"]
    }
  }'

Python SDK

from docling.service_client import DoclingServiceClient
from docling.datamodel.service.requests import GoogleCloudStorageSourceRequest
from docling.datamodel.service.targets import GoogleCloudStorageTarget
import os
import json

SERVICE_URL = os.getenv("DOCLING_SERVICE_URL")
API_KEY = os.getenv("DOCLING_API_KEY")

# Load service account key from file
with open("service-account-key.json") as f:
    service_account_key = json.load(f)

with DoclingServiceClient(url=SERVICE_URL, api_key=API_KEY) as client:
    job = client.submit_batch(
        sources=[
            GoogleCloudStorageSourceRequest(
                bucket="my-input-bucket",
                key_prefix="documents/",
                max_num_elements=100,
                service_account_key=service_account_key
            )
        ],
        target=GoogleCloudStorageTarget(
            bucket="my-output-bucket",
            key_prefix="converted/",
            service_account_key=service_account_key
        ),
        output_formats=["md", "json"]
    )

    # Wait for completion
    response = job.result()
    print(f"Processed {response.num_converted} documents")
    print(f"Succeeded: {response.num_succeeded}")
    print(f"Failed: {response.num_failed}")

Batch API Reference - Complete batch endpoint documentation
Connectors Overview - All available connectors
Google Cloud Storage Documentation - Official GCS documentation
Application Default Credentials - ADC setup guide
Service Account Keys - Creating and managing service account keys
